Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG 1025
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 12000-12500USD per ton
Packaging Details: Composite board box
Delivery Time: 1 to 3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Engine: |
25P Air-cooling Gasoline Engine |
Grinding Head: |
PCD |
Grinding Width: |
250mm Max |
Grinding Depth: |
1-5mm |
Dust Collection System: |
Yes |
Grinding Disc Diameter: |
400mm |
Grinding Disc Speed: |
1400r/min |
Noise Level: |
≤85dB(A) |
Operating Temperature: |
-20℃~50℃ |
Power: |
Electric |
Power Supply: |
220V/50Hz |
Product Name: |
Road Marking Removal Machine |
Size: |
2.2m*1.4m*1.3m |
Vacuum Pressure: |
1800Pa |
Weight: |
500kg |
Working Depth: |
2mm-4mm |
Working Speed: |
2-4km/h |
Working Width: |
200mm-400mm |
Engine: |
25P Air-cooling Gasoline Engine |
Grinding Head: |
PCD |
Grinding Width: |
250mm Max |
Grinding Depth: |
1-5mm |
Dust Collection System: |
Yes |
Grinding Disc Diameter: |
400mm |
Grinding Disc Speed: |
1400r/min |
Noise Level: |
≤85dB(A) |
Operating Temperature: |
-20℃~50℃ |
Power: |
Electric |
Power Supply: |
220V/50Hz |
Product Name: |
Road Marking Removal Machine |
Size: |
2.2m*1.4m*1.3m |
Vacuum Pressure: |
1800Pa |
Weight: |
500kg |
Working Depth: |
2mm-4mm |
Working Speed: |
2-4km/h |
Working Width: |
200mm-400mm |

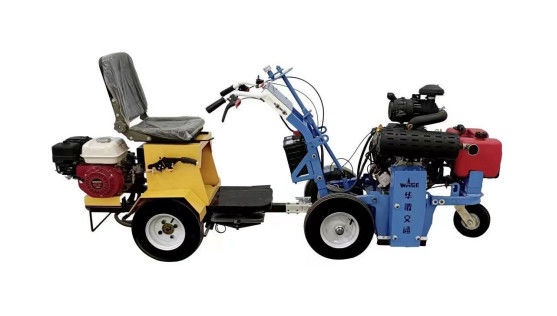

HG 1025 Booster driver for Pushing Road Marking Removal Machine PCD Grinding
Mechanical type pavement marking remover
The mechanical type pavement marking remover uses the gasoline engine to drive the rotation of grind head, so that the grinding head rub against the convex portion of the road surface, thereby achieve the purpose of cleaning the old road line.
The mechanical type pavement marking removal machine is easy to use, fast in construction, easy to maintain, and has good clearance for repeatedly applied thermoplastic marking lines, oscillating marking lines, cold paint marking lines, and even hard-wearing two-component marking lines. It integrates high efficiency, high quality and multi-function in one during the construction process.
Features
• Easy-to-use Depth Control System provides precise cutting depth
• Vibration Reduction Technology provides up to 4X less vibration than the competition
• provides ultimate flexibility and allows deck to “float” on uneven surfaces
Parameter:
| Model | HG-1025 |
| Engine | 25P air-cooling gasoline engine |
| Grinding head | PCD |
| Grinding width | 250mm max |
| Grinding depth | 1-5mm |
| With | Heavy duty air filter,Front steering gear |
| Size (L*W*H) | 1700*700*1100mm |
| Weight | 230kg |
