water jet high pressure line removal machine

Name: water jet high pressure line removal machine
Brand: Xian WAGE Traffic Infrastructure Installation Co., Ltd.
SKU: HG-SSS
Price: 12,250.00 USD
Availability: InStock

Product Details

Brand Name: wage

Model Number: HG-SSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 1 month

Payment Terms: T/T, Western Union

Supply Ability: 3 set per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    high pressure water jet machine, road marking removal water jet, water jet line removal machine


Description

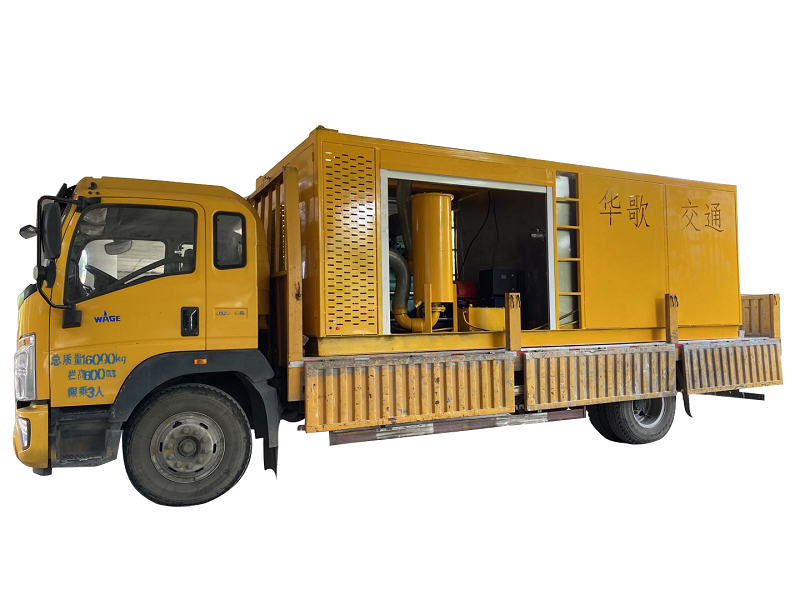

water jet high pressure line removal machine

water jet high pressure line removal machine 0

This device causes minimal damage to the road surface. It simultaneously removes road markings and recovers the resulting debris, resulting in high efficiency and rapid processing of large road marking areas. It thoroughly removes markings and can precisely clean dirty, worn markings, leaving them looking brand new, by adjusting the pressure. It is suitable for a wide range of road surfaces and road marking types, making it an ideal choice for road marking removal.

Engine	Weifang Weichai Power desel engine
Engine power	132kw
Rotation	1500r/min
High pressure pump	110g high pressure pump
Bearing	JPNSK Plunger:Carbide φ20
Seal assembly	Impored molding seal,JP pressure regulating valve,DE high pressure meter
Filter system	Double stainles steel vertical fiter three-stage filtration
Protection unit	Elec controlled pneumatic overpressure unioading overload protection device
Service medium	Room temperature water/municipal water/fire water
High pressure hose	German oniginl utra high pressure hose(resistance 200Mpa)
Monitor unit	Computer monitoring instrument,high pressure pump auto monkoring device
Booster pump	Front booster pump.the max.6 Kg boost the pressure
Pressure	1600kg
Flow rate	32L/min
Oil tank capacity	250L
Water tank capacity	Stainless steel welded steel independent water tank,capacity:4000kg
Water tank size	100020002000mm
Host size	250018001800mm
Weight	2050kg

water jet high pressure line removal machine 1

water jet high pressure line removal machine 2
