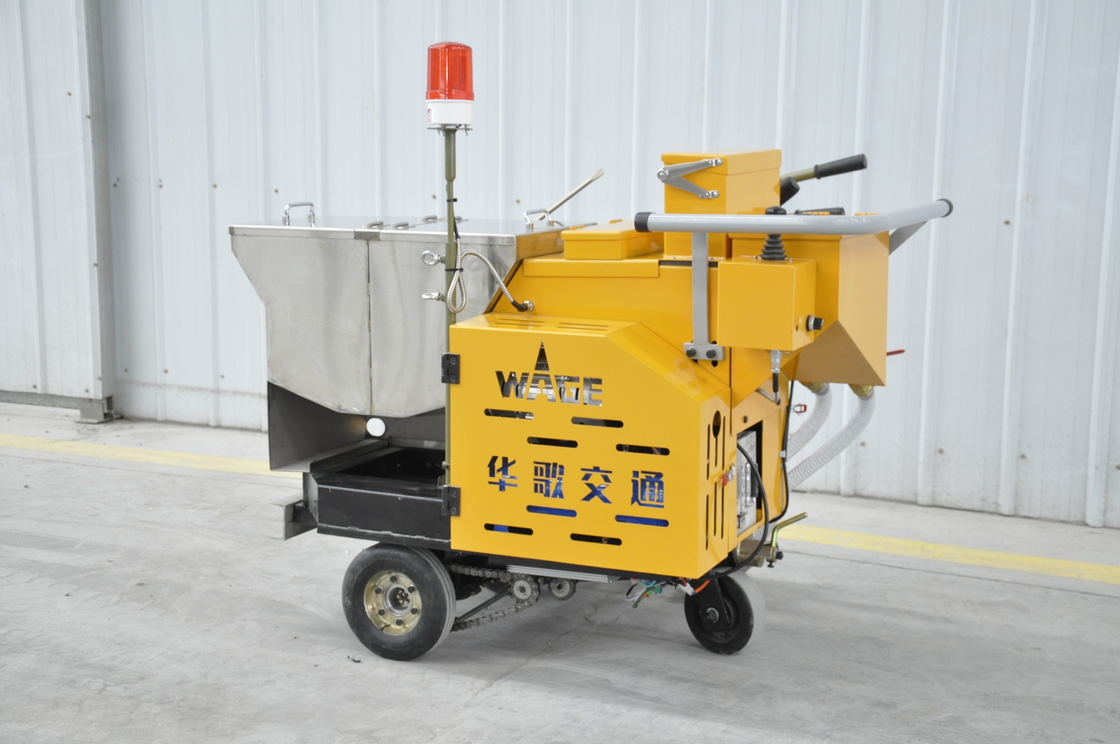

Two Components 2K Convex Line Profile Line Road Marking Machine-MMA

Name: Two Components 2K Convex Line Profile Line Road Marking Machine-MMA
Brand: Xian WAGE Traffic Infrastructure Installation Co., Ltd.
SKU: HG-SVM
Price: 6,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WAGE

Certification: EMS， OHSMS

Model Number: HG-SVM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 5000-8000usd per set

Packaging Details: box

Delivery Time: 1 to 3 weeks

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10 sets per week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2K convex line marking machine, MMA road marking equipment, two-component road marking machine


Marking Model:	Two Components Convex Line	Dispenser:	Self Droping
Paint Cylinder Volume:	60L*2	Glass Cylinder:	25kg
Dimensions:	14008001100mm	Material:	Stainless Steel
Product Name:	Two Component Road Marking Machine	Spray Thickness:	1-4mm
Spray Width:	50-400mm	Weight:	200kg

Marking Model:	Two Components Convex Line
Dispenser:	Self Droping
Paint Cylinder Volume:	60L*2
Glass Cylinder:	25kg
Dimensions:	14008001100mm
Material:	Stainless Steel
Product Name:	Two Component Road Marking Machine
Spray Thickness:	1-4mm
Spray Width:	50-400mm
Weight:	200kg

Description

Two Components 2K Convex Line Profile Line Road Marking Machine-MMA

Product Specifications

Attribute	Value
Marking Model	Two components convex line
Dispenser	Self dropping
Paint Cylinder Volume	60L*2
Glass Cylinder	25kg
Dimensions	14008001100mm
Material	Stainless Steel
Product Name	Two Component Road Marking Machine
Spray Thickness	1-4mm
Spray Width	50-400mm
Weight	200kg

Product Overview

Convex line two component road line marking machine

General information: Two-component marking series is divided into spraying and scraping two construction processes. Two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of:

Environmental protection
High wear resistance
Good reflectivity
Long service life
Easy construction

HG-20MM-II puts two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of:

Thicker marking thickness
Longer wear resistance
Better reflectivity
More uniform mixing

Technical Parameters

Parameter	HG-SVM
Marking Mode	2K convex line
Agitation Speed	650r/min
Glass Micro Sphere Cylinder Capacity	25kg
Spraying System	Self dropping
Paint Cylinder Capacity	60L/tank x 2
Marking Thickness	1.2-2.5mm adjustment within ranges
Standard Width	150mm
Width Optional	100/200/300/400/450mm (scoops replacement)
Size (LWH)	12009001100mm
Weight	200kg

Construction
