Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG-12L
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 5900-6000usd per set
Packaging Details: Box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 set per week
Dimensions: |
48 X 28 X 36 Inches |
Noise Level: |
Low |
Paint Application: |
Airless Spray, Roller |
Paint Capacity: |
2.5 Gallons |
Paint Type: |
Water-based, Solvent-based |
Power Source: |
Gasoline Engine |
Product Name: |
Pavement Striping Machine |
Speed: |
Up To 10 Mph |
Stripe Length: |
Unlimited |
Stripe Quality: |
High |
Stripe Type: |
Single, Double, Triple, Quadruple |
Stripe Width: |
1-4 Inches |
Warranty: |
1 Year |
Weight: |
200 Lbs |
Dimensions: |
48 X 28 X 36 Inches |
Noise Level: |
Low |
Paint Application: |
Airless Spray, Roller |
Paint Capacity: |
2.5 Gallons |
Paint Type: |
Water-based, Solvent-based |
Power Source: |
Gasoline Engine |
Product Name: |
Pavement Striping Machine |
Speed: |
Up To 10 Mph |
Stripe Length: |
Unlimited |
Stripe Quality: |
High |
Stripe Type: |
Single, Double, Triple, Quadruple |
Stripe Width: |
1-4 Inches |
Warranty: |
1 Year |
Weight: |
200 Lbs |

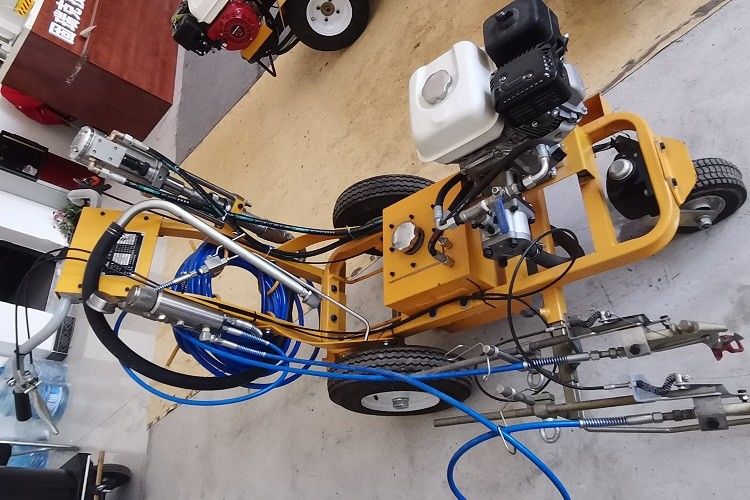

Airless Cold Paint Spraying Pavement Striping Road Marking Machine Double Guns 12L Max
Airless spraying pavement road line striping marking machine two guns
Working Principle
Using gasoline engine to drive hydraulic plunger pump to form high pressure paint in the pump. The pressurized paint is transported to the airless gun through high pressure hose. Finally, the hydraulic pressure is released at the airless nozzle. After instantaneous atomization, the paint is sprayed to the ground to form a marking film layer. Normal temperature marking machine is usually suitable for the construction of underground parking spaces, plot plant area marking, a small number of pavement roads and other kinds of temperature marking.
1. Honda engine is used to ensure strong horsepower.
2. The front wheel positioning system and the vacuum pneumatic tire used in the rear wheel have good shock absorption effect, which can greatly reduce the line deformation caused by road surface fluctuation, and ensure that the marking edges and angles are neat.
3. The spray gun bracket can be adjusted in all directions to ensure the accuracy and convenience of line width.
Parameter:
| HG-6L | HG-12L | |
| power | 5.5HP gasoline | 6.5HP gasoline |
| Core pump | WAGE hydraulic piston pump | Precision Hydraulic Piston Pump |
| Marking mode | High pressure airless spraying | High pressure airless spraying |
| Working pressure | 8-14Mpa | 21Mpa MAX |
| Flow max | 6L/min | 12L/min |
| Spraying width | 100-300mm(single gun) | 50-500mm(DOUBLE GUNS) |
| Spraying thickness | 0.2-0.4mm | 0.2-0.4mm |
| Size (L*W*H) | 1750*680*950mm | 1700*750*1100mm |
| Weight | 128kg | 110kg |
Working:
Application:
