Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG-6L
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 2700-2900usd per set
Packaging Details: Box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 set per week
Control System: |
Manual Or Computerized |
Dimensions: |
Varies By Model |
Paint Capacity: |
5-20 Gallons |
Paint System: |
Airless Or Air Assisted |
Paint Types: |
Water-Based, Solvent-Based, Or Thermoplastic |
Power Source: |
Gasoline, Diesel, Or Electric |
Product Name: |
Pavement Striping Machine |
Steering: |
Manual Or Hydraulic |
Stencils: |
Available |
Striping Speed: |
Up To 8 Mph |
Striping Width: |
0-12 Inches |
Type: |
Road Marking Machine |
Weight: |
Varies By Model |
Control System: |
Manual Or Computerized |
Dimensions: |
Varies By Model |
Paint Capacity: |
5-20 Gallons |
Paint System: |
Airless Or Air Assisted |
Paint Types: |
Water-Based, Solvent-Based, Or Thermoplastic |
Power Source: |
Gasoline, Diesel, Or Electric |
Product Name: |
Pavement Striping Machine |
Steering: |
Manual Or Hydraulic |
Stencils: |
Available |
Striping Speed: |
Up To 8 Mph |
Striping Width: |
0-12 Inches |
Type: |
Road Marking Machine |
Weight: |
Varies By Model |

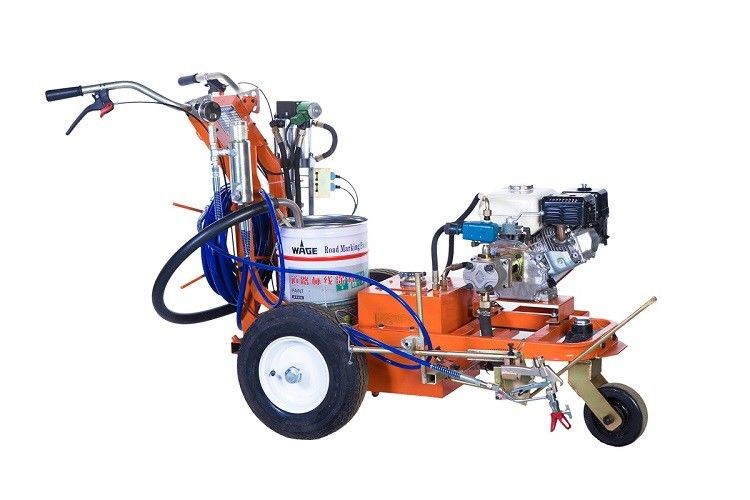

Airless Spraying Pavement Striping Marking Machine Single Gun 6L Max
Airless spraying pavement road line striping marking machine single gun
Working Principle
Using gasoline engine to drive hydraulic plunger pump to form high pressure paint in the pump. The pressurized paint is transported to the airless gun through high pressure hose. Finally, the hydraulic pressure is released at the airless nozzle. After instantaneous atomization, the paint is sprayed to the ground to form a marking film layer. Normal temperature marking machine is usually suitable for the construction of underground parking spaces, plot plant area marking, a small number of pavement roads and other kinds of temperature marking.
1. Honda engine is used to ensure strong horsepower.
2. The front wheel positioning system and the vacuum pneumatic tire used in the rear wheel have good shock absorption effect, which can greatly reduce the line deformation caused by road surface fluctuation, and ensure that the marking edges and angles are neat.
3. The spray gun bracket can be adjusted in all directions to ensure the accuracy and convenience of line width.
Parameter:
| HG-6L | HG-12L | |
| power | 5.5HP gasoline | 6.5HP gasoline |
| Core pump | WAGE hydraulic piston pump | Precision Hydraulic Piston Pump |
| Marking mode | High pressure airless spraying | High pressure airless spraying |
| Working pressure | 8-14Mpa | 21Mpa MAX |
| Flow max | 6L/min | 12L/min |
| Spraying width | 100-300mm(single gun) | 50-500mm(DOUBLE GUNS) |
| Spraying thickness | 0.2-0.4mm | 0.2-0.4mm |
| Size (L*W*H) | 1750*680*950mm | 1700*750*1100mm |
| Weight | 128kg | 110kg |
