Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG 20MM II
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 2400-2600usd per set
Packaging Details: box
Delivery Time: 1 to 3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per week
Marking Model: |
Two Components |
Dispenser: |
Self Droping |
Paint Cylinder Volume: |
60Lx2 |
Glass Cylinder: |
25kg |
Name: |
Pavement Striping Machine |
Nozzle Size: |
0.031-0.063 Inches |
Nozzle Type: |
Airless |
Paint Capacity: |
Up To 5 Gallons |
Paint Types: |
Water-based, Oil-based, And Thermoplastic |
Power Source: |
Gasoline Engine |
Safety Features: |
Rearview Mirror And Safety Flags |
Size: |
Medium |
Striping Accuracy: |
Within 1/8 Inch |
Striping Capacity: |
Up To 2,000 Linear Feet Per Hour |
Striping Speed: |
Up To 4mph |
Striping Width: |
2-4 Inches |
Type: |
Pavement Marking Equipment |
Weight: |
500 Lbs |
Marking Model: |
Two Components |
Dispenser: |
Self Droping |
Paint Cylinder Volume: |
60Lx2 |
Glass Cylinder: |
25kg |
Name: |
Pavement Striping Machine |
Nozzle Size: |
0.031-0.063 Inches |
Nozzle Type: |
Airless |
Paint Capacity: |
Up To 5 Gallons |
Paint Types: |
Water-based, Oil-based, And Thermoplastic |
Power Source: |
Gasoline Engine |
Safety Features: |
Rearview Mirror And Safety Flags |
Size: |
Medium |
Striping Accuracy: |
Within 1/8 Inch |
Striping Capacity: |
Up To 2,000 Linear Feet Per Hour |
Striping Speed: |
Up To 4mph |
Striping Width: |
2-4 Inches |
Type: |
Pavement Marking Equipment |
Weight: |
500 Lbs |

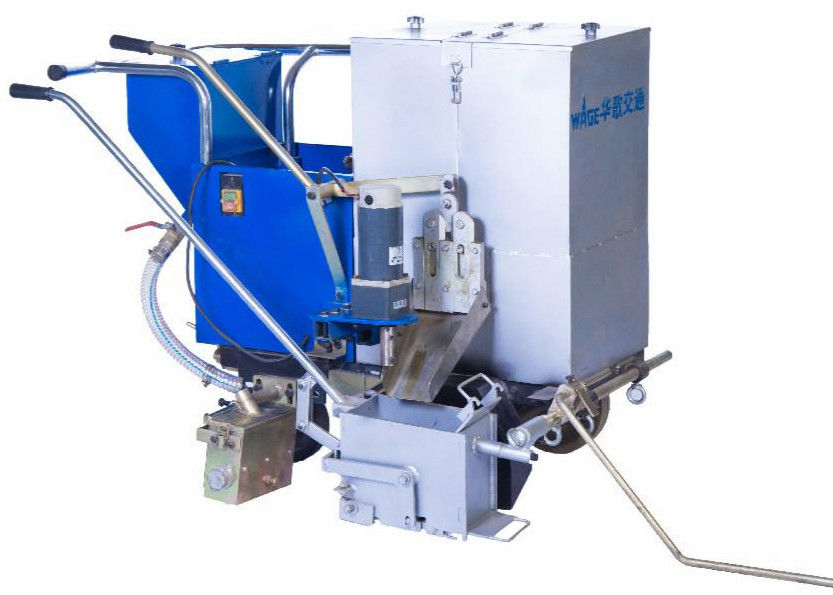

handle pushing Scraping two compoent pavement striping machine
Handle pushing Scraping two compoent pavement striping machine
General information:
two-component marking series is divided into spraying and scraping two construction processes, two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.
HG-20MM-II is to put two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.
Parameter:
| HG-20MM-Ⅱ | |
| Marking mode | Double compartment scraping |
| Agitation speed | 650r/min |
| Glass Micro sphere cylinder capacity | 25kg |
| Spraying system | Self dropping |
| Paint cylinder capacity | 60L/ tank x 2个cylinder |
| Marking thickness | 1.2-2.5mm adjustment within ranges |
| Standard thickness | 150mm |
| Width optional | 100/200/300/400/450mm(scoops replacement) |
| Size (L*W*h) | 1200*900*1100mm |
| Weight | 162kg |
