Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG-DC
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: FOB 27500-28500USD / set
Packaging Details: Composite board box
Delivery Time: 1 to 4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 set per week
Paint Type: |
Double Component |
Marking Model: |
Spraying |
Paints: |
98:2 BPO |
Move Mold: |
Booster Pushing |
Special For: |
Air Port , Port, Rainy Area |
Curing: |
Quickly Drying In 5 Miniute |
Water Proof: |
Rain Or Water Proof In 5 Minute |
Working: |
Max -30℃ |
Paint Type: |
Double Component |
Marking Model: |
Spraying |
Paints: |
98:2 BPO |
Move Mold: |
Booster Pushing |
Special For: |
Air Port , Port, Rainy Area |
Curing: |
Quickly Drying In 5 Miniute |
Water Proof: |
Rain Or Water Proof In 5 Minute |
Working: |
Max -30℃ |

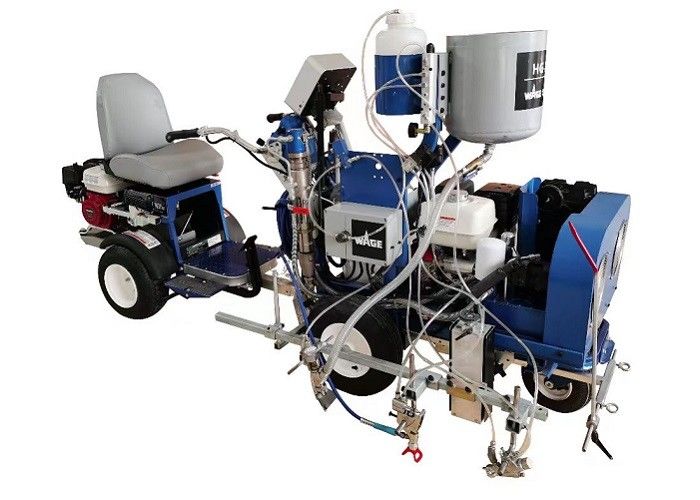

98:2 two components spraying pavement line marking machine
Advantage:
1. Safe, reliable, durable.
2. Environmental friendly.
3. Quickly drying – construction fast, quickly curing in 5 minutes achieved, full construction process can be finished in 1 hour.
4. Curing even at cold temperature, max -30℃, can working on any season almost.
5.rain or water proof within minutes, suit well in rainy climate
Marking Machine structure
Application
Special good for airport, port, and traffic hub,heavy traffic road, rainy pavement etc.
Characters
| Main engine: | 13 HP Honda air-cooled gasoline engine |
| Auxiliary engine: | 6.5HP Honda air-cooled gasoline engine |
| Marking type: | Double components spraying(98:2) |
| Outfitted with: | Micro metering pump, Flow sensor, Touching screen |
| Drive type: | Hydrostatic drive |
| Moving speed: | Forward:16km/h, backward: 10km/h |
| Climbing: | 20 degrees |
| Glass bead volume: | 20L |
| Spreading system: | Pneumatic spraying |
| Max working pressure: | 21 Mpa |
| Compressor working pressure: | 1.0 Mpa |
| Max flow rate of coating: | 8.14L/max |
| BPO flow : | 0-1.5L/minute |
| External dimensions: | 2700*850*1150 mm |
| Net weight: | 320kg |
Spraying way
Construction spot:
