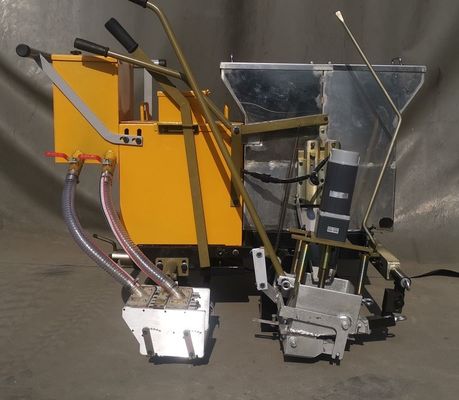

Outdoor 2K Pushing Scraping Road Line Marking Machine Two Components
Our Product Introduction
for more products please visit us on wagetraffic.com
Basic Information
Place of Origin:
China
Brand Name:
WAGE
Certification:
EMS， OHSMS
Model Number:
HG 20MM II
Minimum Order Quantity:
1 set
Price:
2400-2600usd per set
Packaging Details:
box
Delivery Time:
1 to 3 weeks
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 sets per week
Product Specification
Marking Model:
Two Components
Dispenser:
Self Dropping
Paint Cylinder Volume:
60L X2
Glass Cylinder:
25kg
Dimension:
3.5m*1.2m*1.2m
Operating System:
Manual/Automatic
Power Consumption:
2.2KW
Power Supply:
220V/50HZ
Product Name:
Two Component Road Marking Machine
Spraying Material:
Thermoplastic
Spraying Precision:
≤2mm
Spraying Pressure:
0.2-0.5Mpa
Spraying Speed:
3-20m/min
Spraying Temperature:
180-220℃
Spraying Thickness:
0.2-2mm
Spraying Width:
50-150mm
Weight:
500kg
Working Environment:
Outdoor
Highlight:
Two Components Road Line Marking Machine
,Outdoor Road Line Marking Machine
,2K Pushing Road Line Marking Machine
Our Product Introduction
for more products please visit us on wagetraffic.com
Product Description

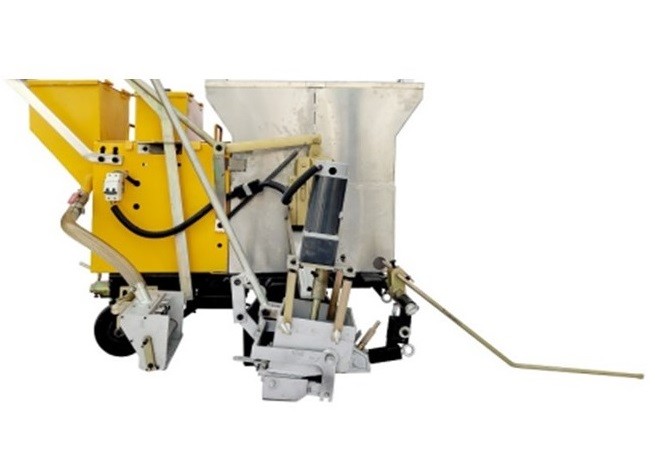

pushing Scraping two compoent road marking machine
Scraping two compoent road marking machine

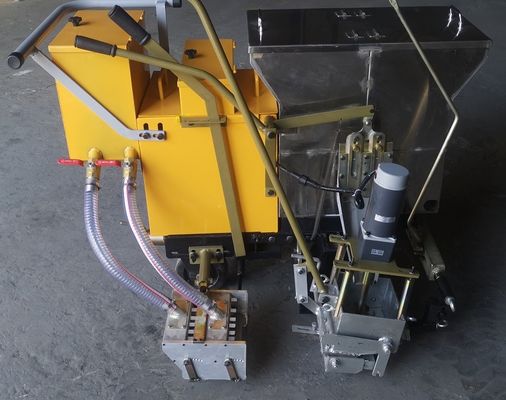

new version 2024:

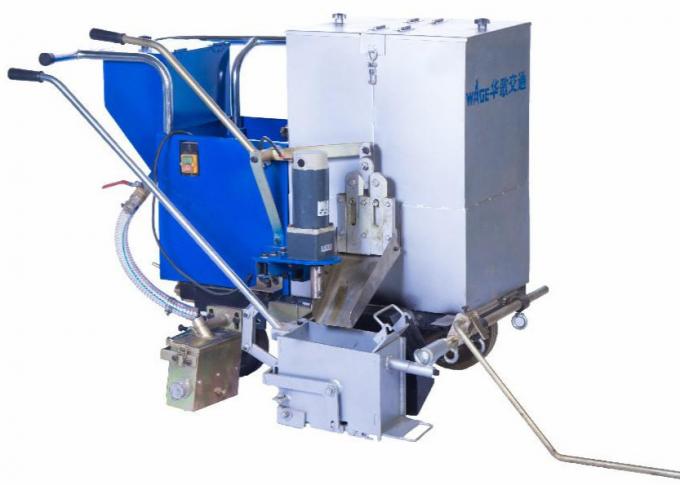

old version
General information:
two-component marking series is divided into spraying and scraping two construction processes, two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.
HG-20MM-II is to put two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.
Parameter:
| HG-20MM-Ⅱ | |
| Marking mode | Double compartment scraping |
| Agitation speed | 650r/min |
| Glass Micro sphere cylinder capacity | 25kg |
| Spraying system | Self dropping |
| Paint cylinder capacity | 60L/ tank x 2个cylinder |
| Marking thickness | 1.2-2.5mm adjustment within ranges |
| Standard thickness | 150mm |
| Width optional | 100/200/300/400/450mm(scoops replacement) |
| Size (L*W*h) | 1200*900*1100mm |
| Weight | 162kg |

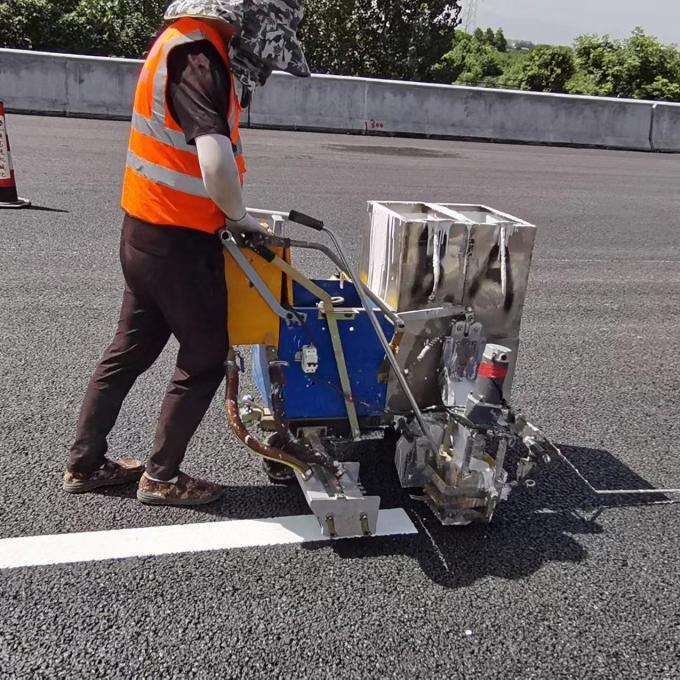

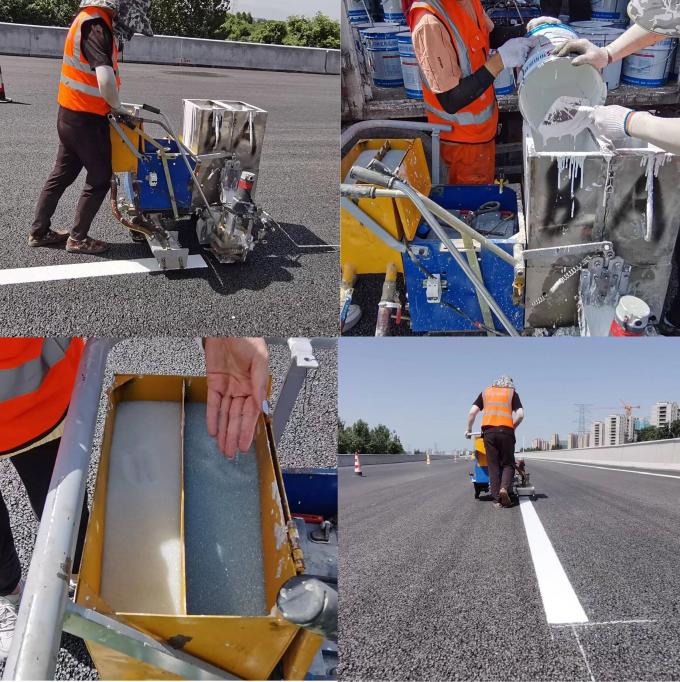

Construction:
