Xian WAGE Traffic Infrastructure Installation Co., Ltd.
wagetraffic.com
Double Component Paint MMA BPO Spraying Line Striping Equipment for Airport
Our Product Introduction
for more products please visit us on wagetraffic.com
Basic Information
Place of Origin:
China
Brand Name:
WAGE
Certification:
EMS OHSMS
Model Number:
HG-DC
Minimum Order Quantity:
1 set
Price:
FOB 27500-28500USD / set
Packaging Details:
Composite board box
Delivery Time:
1 to 4 weeks
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 set per week
Product Specification
Paint Type:
Double Component
Marking Model:
Spraying
Paints:
98:2 MMA+BPO
Move Mold:
Booster Pushing
Special For:
Air Port , Port, Rainy Area
Curing:
Quickly Drying In 5 Miniute
Water Proof:
Rain Or Water Proof In 5 Minute
Working:
Max -30℃
Highlight:
MMA BPO Striping Equipment
,Double Component Paint Striping Equipment
,Airport Striping Equipment
Our Product Introduction
for more products please visit us on wagetraffic.com
Product Description
98:2 two components quickly drying spraying pavement striping machine special for airport port
98: 2 MMA +BPO quickly drying spraying pavement striping machine
Advantage:
1. Safe, reliable, durable.
2. Environmental friendly.
3. Quickly drying – construction fast, quickly curing in 5 minutes achieved, full construction process can be finished in 1 hour.
4. Curing even at cold temperature, max -30℃, can working on any season almost.
5.rain or water proof within minutes, suit well in rainy climate

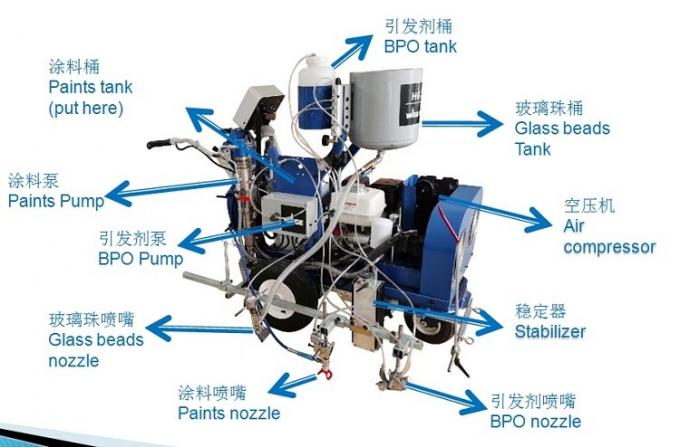

Marking Machine structure
Application
Special good for airport, port, and traffic hub,heavy traffic road, rainy pavement etc.
Characters
| Main engine: | 13 HP Honda air-cooled gasoline engine |
| Auxiliary engine: | 6.5HP Honda air-cooled gasoline engine |
| Marking type: | Double components spraying(98:2) |
| Outfitted with: | Micro metering pump, Flow sensor, Touching screen |
| Drive type: | Hydrostatic drive |
| Moving speed: | Forward:16km/h, backward: 10km/h |
| Climbing: | 20 degrees |
| Glass bead volume: | 20L |
| Spreading system: | Pneumatic spraying |
| Max working pressure: | 21 Mpa |
| Compressor working pressure: | 1.0 Mpa |
| Max flow rate of coating: | 8.14L/max |
| BPO flow : | 0-1.5L/minute |
| External dimensions: | 2700*850*1150 mm |
| Net weight: | 320kg |

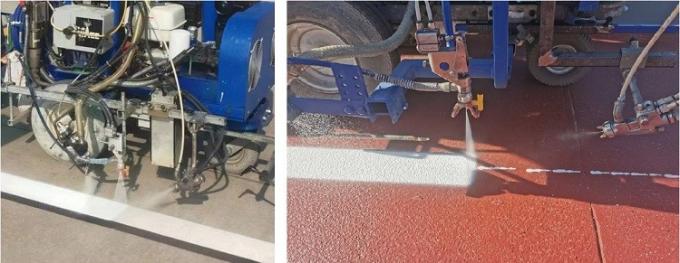

Spraying way

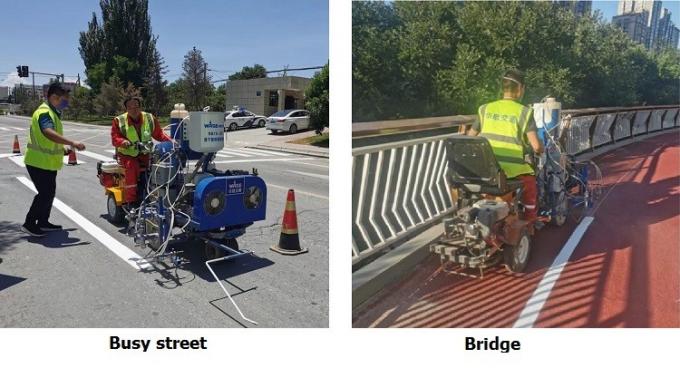

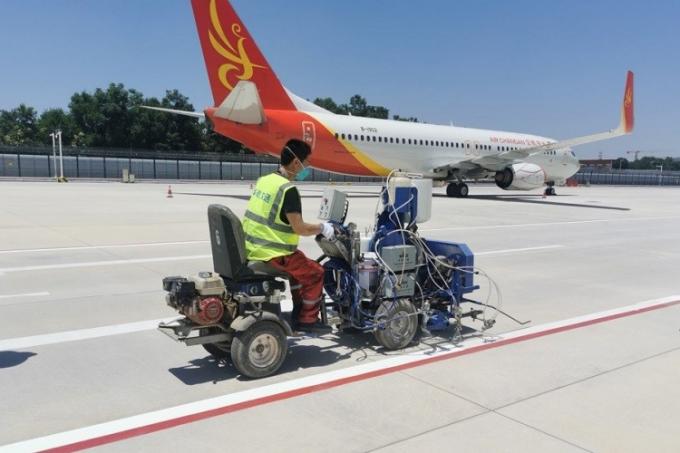

Construction spot:
